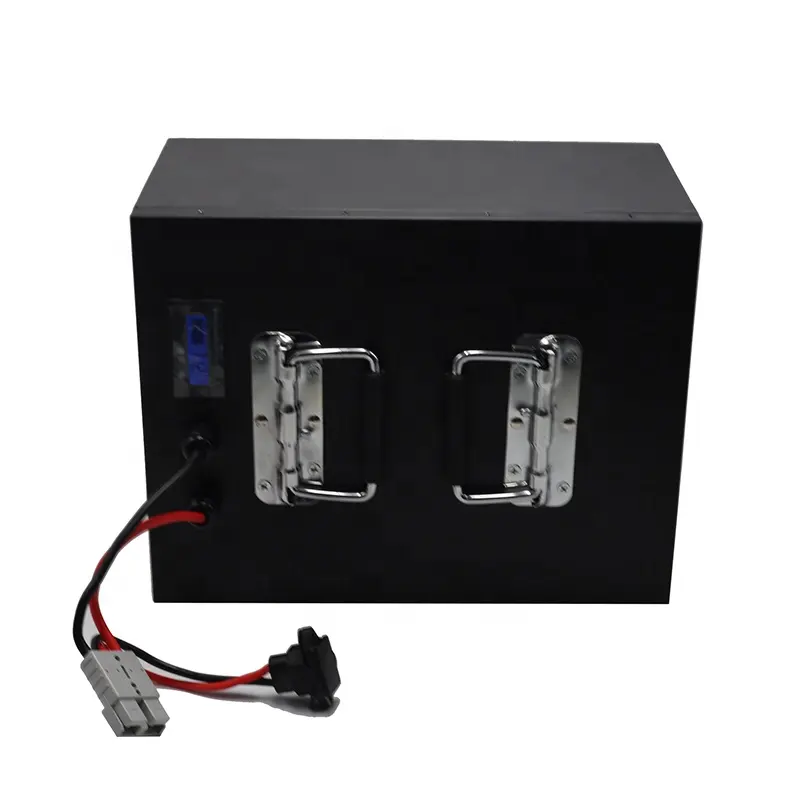

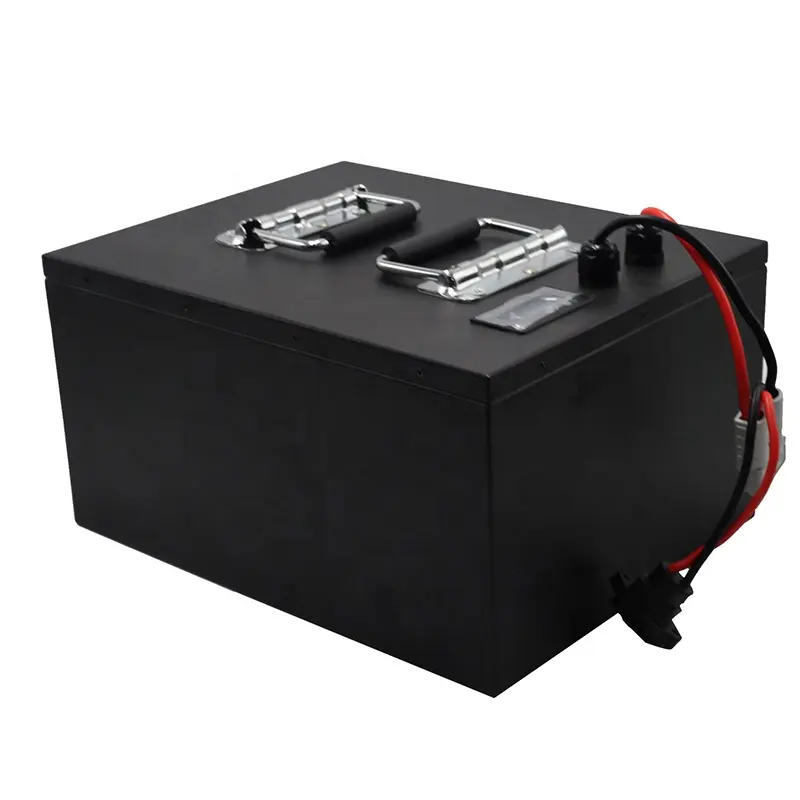

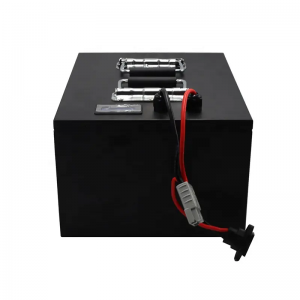

EV कारहरूको लागि अनुकूलित LiFePO4 ब्याट्री प्याक 72v 60ah इलेक्ट्रिक भेहिकल ब्याट्री लिथियम आयन प्याक

2023-06-06 02:13

विशिष्टता

ब्रान्ड नाम	सबै एक मा
मोडेल	AIN7260
वारेन्टी	Years बर्ष
नाममात्र भोल्टेज	76.8V
नाममात्र क्षमता	[email protected]/customize
उर्जा	4416Wh
आन्तरिक प्रतिरोध	≤50mΩ
चक्र जीवन	4000 Cycles @ 0.2C Charging/Discharging ,Until 80% Capacity
स्वयं डिस्चार्ज	२ month per मा प्रति महिना .5≤.℃%
अधिकतम चार्जिंग भोल्टेज	87.6 V
चार्ज मोड	At 0℃~45℃ temperature, charged to 87.6  V at a constant current of 0.2C, and then,changed continuously with constant voltage of 87.6 V until the current was not more than 0.02C
वर्तमान चार्ज गर्दै	30A
अधिकतम चार्जिंग वर्तमान	60A
वर्तमान डिस्चार्जिंग	30A
Max. discharge Continuous Current	60A
अधिकतम।पुल वर्तमान	120A(<3S）
कट अफ भोल्टेज डिस्चार्ज गर्दै	60V
तापमान चार्ज गर्नुहोस्	० ℃ 45 45 ℃ (℉२ ℉ देखि ११3 ℉) @ ±० ± २%% सापेक्ष आर्द्रता
डिस्चार्ज तापमान	-२० ℃ 60० ℃ (-4 ℉ १ 140० ℉) @ ±० ± २%% सापेक्ष आर्द्रता
भण्डारण तापमान	० ℃ 45 45 ℃ (℉२ ℉ देखि ११3 ℉) @ ±० ± २%% सापेक्ष आर्द्रता
पानी धुलो प्रतिरोध	IP55
सेल र ढाँचा	LFP  60AH 24S1P/customize
केसिंग	Metal Case
आयाम (L * W * H * TH)	अनुकूलन गर्नुहोस्
तौल	50kg
टर्मिनल	M6 or Anderson or another bolt screw
Peak discharge current BMS	60A
High temp port. Low temp port.	over charge port. over discharge port.
चार्ज विधि	CC / CV
Terminal Type	M6 or Anderson or another bolt screw/customize
प्रमाणपत्र	CE, RoHS ,MSDS and UN38.3 certification
applications	Golf Carts, Electric Forklifts,Slow Speed Car; AGV,Electric Motorcycle; Sightseeing car;RV ,Tricycle, electric vehicles, Electric Wheelchairs, Electric Power Systems, Uninterruptible Power Supplies, Solar Energy Storage Systems,BOATS

अनुस्मारक

1.Support customization, according to the specifications required by customers: voltage, capacity, power, working current, size,weight.

2. Factory wholesale price, our factory has a price advantage. Cells of the same level are the cheapest, and you can choose the corresponding cells to make a battery pack according to your requirements.

3.Before placing Order please contact customer service to communicate the required specifications to confirm the price.

अनुप्रयोग

हाम्रो कारखाना

Why to choose us?

* We have our own factory and company, which belong to an absolute integration of industry and trade.
* A large number of batteries are in stock.
* Have very good product resources.
* Good product quality and favorable price.
* The product is 100% original and brand new.
* 100% on time delivery. Fast delivery.(including battery pack <7 days).
* Long warranty 2-5 years.
* provide sample 2-7 days.
* Professional after-sales service.
* We have a complete industrial chain and professional engineers can make battery packs that satisfy you as quickly as
possible.
If you want to know more about the information, please free feel to contact me. Thanks!

प्याकिंग र शिपिंग

प्याकिंग

1). Carton Size: customized or based on actual weight and volume, best quality.

2). 5-layers exporting carton or customized outer packaging for paper bags;

ढुवानी

1). By Express (3-30working days),there are express shipping or economic shipping,suitable for small quantity.

2). By Train(25-28days),for EU Country,including customs clearance, all the import tax fees and UPS delivery to the door.

3). By Sea (15-30 days), it suitable for regular mass production.

We cooperate with excellent international freight forwarding companies to provide cheap and efficient logistics services. If you have any shipping issues, please feel free to contact me.



FAQ

प्रश्न: मैले कसरी भुक्तानी गर्नुपर्छ? तपाईं कुन भुक्तानी विधिहरू स्वीकार गर्नुहुन्छ?
A: T/T, PayPal, Western Union.

प्रश्न: के नमूना अर्डर स्वीकार्य छ?
A: हो, अधिकांश ब्याट्रीहरूको लागि, परीक्षण गुणस्तरको लागि नमूना आदेशहरू व्यावहारिक र स्वीकार्य छ।

Q: Is your battery quality approved?
A: Yes, we guarantee that all cells are 100% original from Brand. And we will have full inspection of each cells and grouping them before assembling into battery packs. And all finished battery packs will be under a full inspection
before shipment.

Q: How can you prove that your cells are 100% original?
A: We can show you the original pack list and other related documents.

Q: what is your lead time if I placed an order?
A: For all products in stock, our lead time is within 2 working days after payment received. For these that we don't stock for the moment such as customized battery packs, the lead time is around 7-10 days.

Q: तपाईको वारेन्टी के हो?
A: These situations not provide return nor refund:
1.After the assembly or assembly process happen any problem, such as the protection board connected to the wrong wire burned lead to battery damage, charger failure, the assembly error or unbalanced assembly, etc.
२. क्षतिको कारणले गर्दा, जस्तै ब्याट्री बल्ज/वेल्डेड, सुरक्षा बिना ब्याट्री प्याक चार्ज को कारण बीएमएस।
