गल्फ कार्ट आरभी क्याम्परको लागि अनुकूलित गहिरो चक्र 36V 48V 72V 50ah 80ah 100ah लिथियम ब्याट्री

2024-03-15 02:39

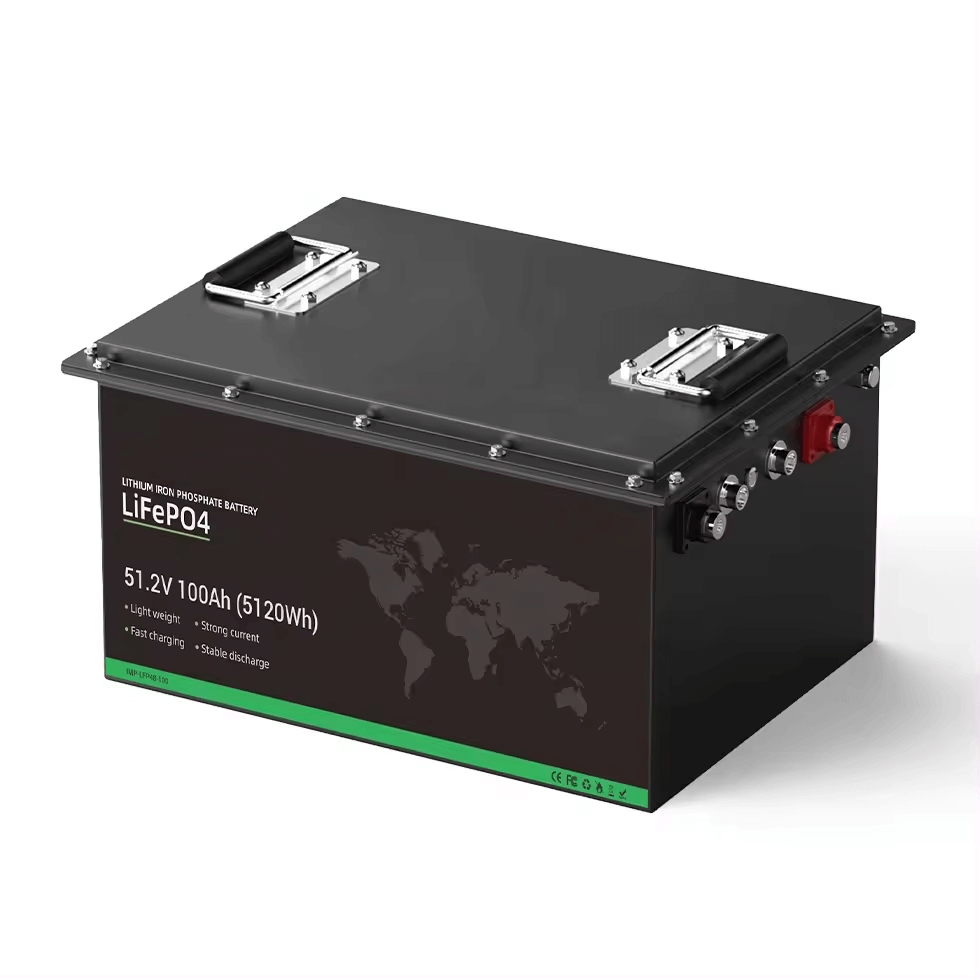

LiFePO4 Battery for Golf Cart ( OEM/ODM ) TECHNICAL SPECIFICATION
Data sheet	नाममात्र भोल्टेज	नाममात्र क्षमता	Nominal Energy	आयाम	तौल
36V  (Support Customized Capacity/Size)
LFP36-50	.4 38.VV	50Ah	1920Wh	522*238*218mm	≈18.5kg
LFP36-60	.4 38.VV	60Ah	2304Wh	522*238*218mm	≈21kg
LFP36-80	.4 38.VV	80Ah	3072Wh	522*238*218mm	≈25.5kg
LFP36-100	.4 38.VV	100Ah	3840Wh	522*238*218mm	≈31kg
48V  (Support Customized Capacity/Size)
LFP48-50	.2१.२V	50Ah	2560Wh	522*238*218mm	≈25kg
LFP48-60	.2१.२V	60Ah	3072Wh	522*238*218mm	≈31kg
LFP48-80	.2१.२V	80Ah	4096Wh	522*238*218mm	≈32.5kg
LFP48-100	.2१.२V	100Ah	20१२०W	640*245*220mm	≈38.5kg
72V (Support Customized Capacity/Size)
LFP72-50	76.8V	50Ah	3840Wh	470*330*150mm	≈50kg

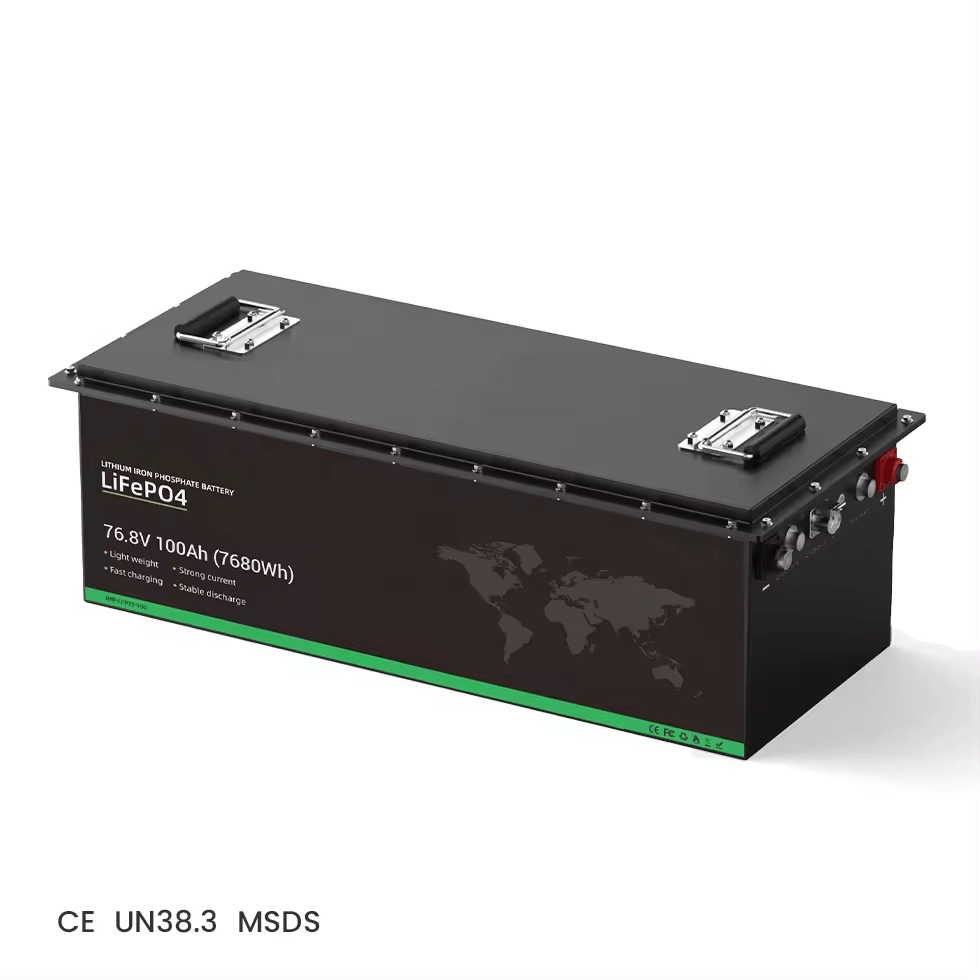

LFP72-100	76.8V	100Ah	7680Wh	730*350*150mm	≈65kg
General
जीवन चक्र		≥6000 cycles (80%DOD), at 25°C
तापमान चार्ज गर्नुहोस्		0 ~ 45°C (32 ~ 113°F)
डिस्चार्ज तापमान		-20 ~ 55°C(-4 ~ 131F)
भण्डारण तापमान		-10 ~ 45°C(14 ~ 113°F)
Communication Mod		Vehicle CAN/ Charge CAN/ Intranet CAN/ 485 communication/ Wireless communication

सही छनोट

1. ALL IN ONE lithium batteries are drop-in solutions

2.Outlasts equivalent lead-acid batteries

3.Top quality standards and proven results in many applications

प्रदर्शन

1. एकल ब्याट्री सञ्चालन
2. थोरै वा कुनै भोल्टेज ड्रप
3. डिस्चार्जको सबै स्तरहरूमा द्रुत यात्रा गति

ALL IN ONE Battery Safety and Sustainability

1. कुनै एसिड धुवाँ वा फैलिएको छैन
2. बिजुलीको प्रयोग घटाउनुहोस्
3. Less waste
4. 99% recyclable

अनुप्रयोग

हाम्रो कारखाना



ढुवानी र प्याकिंग

1.Pack in safety industrial package, with IATA shipping standard.
2. For sample or small order: ship by DHL, UPS, FedEx and TNT etc…
Large. ठूलो अर्डरको लागि, AIR वा OCEAN द्वारा जहाज।

FAQ

प्रश्न: तपाईं ट्रेडिंग कम्पनी वा निर्माता हुनुहुन्छ?
A: We are ALL IN ONE original factory from Anhui Province , China.

Q. Can I print my LOGO on it？
A: YES, LOGO/sticker/OEM/ODM welcomed

Q. Can your battery be wired in series or parallel?
A: YES，YOU can connect up to ANY of these batteries in parallel. For series, suggest within 3 units.

Q. Can the BMS be removed and replaced if it breaks? Can the case be opened to replace a bad cell?
A: YES, the case can be opened to replace the BMS & cells on the guidance of engineer.

प्रश्न: के मसँग नमूनाहरू परीक्षण गर्न सकिन्छ? र नमूना अर्डरको लागि नेतृत्व समय के हो?
A: Yes,we can supply samples,the lead time for samples is 7 days.and buyer pay for sample cost and shipping cost.

Q. What warranty do I have？
A: Warranty: 3 years, we would provide repair or replacement with the warranty period.if any quality problems on our side in this period, Please show us video or photos for confirm before we sent solution.

Q: के तपाइँ OEM / ODM स्वीकार गर्नुहुन्छ?
A: Yes,it is available.We have OEM group to design battery case.

Q. Do you have Blue-tooth communication with your batteries?
A: Yes, please let us know if you NEED to add Blue-tooth communication with the batteries. and YOU can rename your battery in the App.

Q. Does the app allow to check the voltage of each cell?
A: हो, एपले तपाईंलाई कुनै पनि समयमा प्रत्येकको भोल्टेज पढ्न अनुमति दिन्छ।

Q: तपाईं ब्याट्री वास्तविक क्षमता हो?
A: All of our battery cells with Grade A,100% new and real capacity. We promise 100% Top grade A. If you found it is not A battery cell, you can contact us for refund.

Q: तपाईंसँग कस्तो प्रकारको प्रमाणपत्रहरू छन्?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 etc.

Q: तपाईंसँग MOQ छ?
A: सीमित छैन। सानो अर्डर पनि स्वागत गर्दछ। अधिक मात्राको राम्रो मूल्य छ, हामी तपाईंको लागि सबै भन्दा राम्रो मूल्य जाँच गर्नेछौं।

प्रश्न: तपाईंको भुक्तानी अवधि के हो?
A: We adopt T/T,Paypal, payment way and so on. If order amount>10K usd, The payment term will be 30% T/T for deposit and the balance before shipment。

Q. If your lithium battery goes into protection mode, how do you wake it up?
A: ब्याट्री उठाउन लिथियम चार्जरहरू प्रयोग गर्दै। लिथियम चार्जरले ब्याट्रीहरू स्वतः उठाउँछ।
